Java实践篇-Api接口多版本控制

1. 说明

随着业务不断的升级优化，会导致新老版本的api入参和出参不一致。在实际场景中又不能每次修改接口都要求客户端强制升级，这样会使用户体验变得很差。而多版本接口的设计就是为了兼容新老版本的差异，从而提高用户体验。

2. 多版本策略

管理策略	示例
域名区分	v1.api.com v2.api.com
请求url path	/v1/test/index /v2/test/index
请求参数区分	/test/index?v=v1 /test/index?v=v2

3. 请求(url path)实现

基于SpringBoot(2.3.5.RELEASE)实现；

3.1 自定义版本注解

新建文件: src/main/java/com/hui/apiversion/annotion/ApiVersion.java

package com.hui.apiversion.annotion;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target({ElementType.METHOD,ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)

/**
 * 版本控制器
 */
public @interface ApiVersion {
    // 标识版本号
    int value() default 1;
}

3.2 自定义匹配URL

新建文件: src/main/java/com/hui/apiversion/config/ApiVersionCondition.java

package com.hui.apiversion.config;

import lombok.Data;
import org.springframework.web.servlet.mvc.condition.RequestCondition;

import javax.servlet.http.HttpServletRequest;
import java.util.regex.Matcher;
import java.util.regex.Pattern;

/**
 * 定义url匹配条件
 */
@Data
public class ApiVersionCondition implements RequestCondition<ApiVersionCondition> {
    /**
     * 匹配url路径中的版本，如/v[1-9]/
     */
    private final static Pattern VERSION_PREFIX_PATTERN = Pattern.compile("v(\\d+)");

    // api的版本
    private int apiVersion;

    /**
     * @param apiVersion
     */
    public ApiVersionCondition(int apiVersion){
        this.apiVersion = apiVersion;
    }

    /**
     * 将不同的条件进行合并
     * @param apiVersionCondition
     * @return
     */
    @Override
    public ApiVersionCondition combine(ApiVersionCondition apiVersionCondition) {
        // 以最后定义的版本为准，即最后版本的定义的方法覆盖上以前版本的方法
        return new ApiVersionCondition(apiVersionCondition.getApiVersion());
    }

    /**
     * 根据request查找匹配到的筛选条件
     * @param httpServletRequest
     * @return
     */
    @Override
    public ApiVersionCondition getMatchingCondition(HttpServletRequest httpServletRequest) {
        Matcher matcher = VERSION_PREFIX_PATTERN.matcher(httpServletRequest.getRequestURI());
        if (matcher.find()) {
            int version = Integer.parseInt(matcher.group(1));

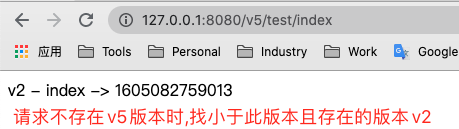

            if (version >= this.apiVersion) {
                return this;
            }
        }
        return null;
    }

    /**
     * 不同筛选条件比较,用于版本排序(最新的版本 > 老版本)
     * @param apiVersionCondition
     * @param httpServletRequest
     * @return
     */
    @Override
    public int compareTo(ApiVersionCondition apiVersionCondition, HttpServletRequest httpServletRequest) {
        return apiVersionCondition.getApiVersion() - this.apiVersion;
    }
}

3.3 自定义匹配处理器

新建文件: src/main/java/com/hui/apiversion/config/ApiVersionConfig.java

package com.hui.apiversion.config;
import com.hui.apiversion.annotion.ApiVersion;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.AnnotationUtils;
import org.springframework.format.support.FormattingConversionService;
import org.springframework.web.accept.ContentNegotiationManager;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurationSupport;
import org.springframework.web.servlet.mvc.condition.RequestCondition;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;
import org.springframework.web.servlet.resource.ResourceUrlProvider;

import java.lang.reflect.Method;

@Configuration
public class ApiVersionConfig extends WebMvcConfigurationSupport {
    /**
     * 重写请求过处理的方法
     * 在使用@RequestMapping注解时，SpringMvc通过RequestMappingHandlerMapping类的Bean解析、注册、缓存映射关系，并提供匹配执行链的功能
     * @param contentNegotiationManager
     * @param conversionService
     * @param resourceUrlProvider
     * @return
     */
    @Override
    public RequestMappingHandlerMapping requestMappingHandlerMapping(ContentNegotiationManager contentNegotiationManager, FormattingConversionService conversionService, ResourceUrlProvider resourceUrlProvider) {
        CustomRequestMappingHandlerMapping customRequestMappingHandlerMapping = new CustomRequestMappingHandlerMapping();
        customRequestMappingHandlerMapping.setOrder(1);
        return customRequestMappingHandlerMapping;
    }

    /**
     * 自定义匹配的处理器
     */
    private static class CustomRequestMappingHandlerMapping extends RequestMappingHandlerMapping{

        /**
         * 匹配有@ApiVersion注解的类
         * @param handlerType
         * @return
         */
        @Override
        protected RequestCondition<?> getCustomTypeCondition(Class<?> handlerType) {
            ApiVersion apiVersion = AnnotationUtils.findAnnotation(handlerType, ApiVersion.class);
            return createCondition(apiVersion);
        }

        /**
         * 匹配有@ApiVersion注解的方法
         * @param method
         * @return
         */
        @Override
        protected RequestCondition<?> getCustomMethodCondition(Method method) {
            ApiVersion apiVersion = AnnotationUtils.findAnnotation(method, ApiVersion.class);
            return createCondition(apiVersion);
        }

        /**
         * 根据版本号创建匹配条件
         * @param apiVersion
         * @return
         */
        private RequestCondition<ApiVersionCondition> createCondition(ApiVersion apiVersion){
            return apiVersion == null ? null : new ApiVersionCondition(apiVersion.value());
        }
    }

    /**
     * 当设置WebMvcConfigurationSupport配置时，WebMvcAutoConfiguration则会失效，导致静态资源无法方法(No mapping for get),
     * 所以将静态资源添加进MVC容器中
     * @param registry
     */
    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        super.addResourceHandlers(registry);
        if (!registry.hasMappingForPattern("/**")) {
            registry.addResourceHandler("/**")
                    .addResourceLocations(
                            "classpath:/META-INF/resources/",
                            "classpath:/resources/",
                            "classpath:/static/",
                            "classpath:/public/"
                    );
        }
    }
}

3.4 创建controller

新建(v1)版本控制器: src/main/java/com/hui/apiversion/controller/v1/TestController.java

package com.hui.apiversion.controller.v1;

import com.hui.apiversion.annotion.ApiVersion;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController("TestControllerV1")
@ApiVersion
@RequestMapping("{version}/test")
public class TestController {

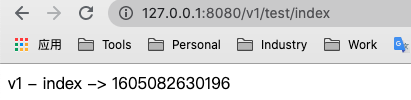

    @RequestMapping("/index")
    public String index(){
        return "v1 - index -> " + System.currentTimeMillis();
    }

    /**

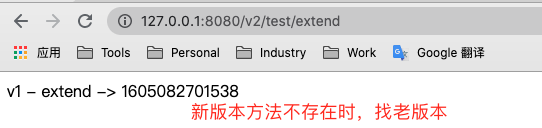

     * 新版本不存在时，会调用此方法，如: http://127.0.0.1:8080/v2/test/extend
     * @return
     */
    @RequestMapping("/extend")
    public String extend(){
        return "v1 -  extend -> " + System.currentTimeMillis();
    }
}

新建(v2)版本控制器: src/main/java/com/hui/apiversion/controller/v2/TestController.java

package com.hui.apiversion.controller.v2;

import com.hui.apiversion.annotion.ApiVersion;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController("TestControllerV2")
@ApiVersion(2)
@RequestMapping("{version}/test")
public class TestController {
    /**

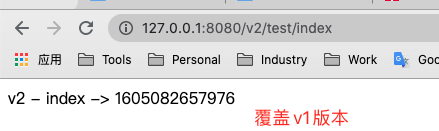

     * 覆盖老版本的test/index方法
     * @return
     */
    @RequestMapping("index")
    public String index(){
        return "v2 - index -> "+ System.currentTimeMillis();
    }
}

当控制器名字一样时，需要通过@RestController("?") 来设置唯一值，否则报错: ...Annotation-specified bean name 'testController' for bean class .. conflicts with existing, non-compatible bean definition of same name and class ...
